Sinumerik 808D (Special)

Certified trainer for Sinumerik
« back to Range of Services

Sinumerik 808D Training (Special)

Sinumerik 808D is a very economical control, that's perfect for training in ISO CNC programming and for building or retrofitting of basic standard machines. Both for Sinumerik 808D version 4.4 (Basic) and for Sinumerik 808D version 4.6 (Advanced) you get training or a trainer here.
Please get also in touch if you need hardware or related services like configuration, programming or commissioning.

Location: Worldwide
Language: English, German

Operating and Programming Sinumerik 808D (Basic + Advanced)

Training operating and programming Sinumerik 808D
  • Customized workshops and classes (duration: individual)

  • Regular classes (duration: 3 days)

  • CNC-programming using Sinumerik G-code

  • CNC-programming using ISO-code, turning + milling

  • Utilization of technology cycles

  • Using high level language

  • Free simulation software 808DonPC, without time period limit

  • On-site training using control-identical simulation software or on your machine

  • Mobile classroom + certified trainer

  • Language of training: English, German or using interpreter

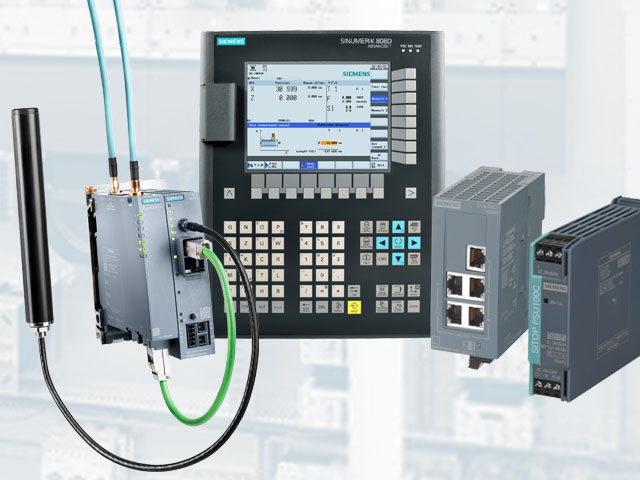

Network Support Functions of Sinumerik 808D Advanced

Training regarding Network Functions of Sinumerik 808D Advanced Other than Sinumerik 808D Basic, 808D Advanced provides an Ethernet interface, which enables an easy connection to an existing LAN resp. intranet.
  • Training regarding technic and security questions

  • IT and infrastructure security in industrial environments

  • Hardware overview of SCALANCE product line

  • Integration of 808D Advanced into a local network

  • Application examples (e.g. data backup)

  • User manuals and training documentation in English and Chinese

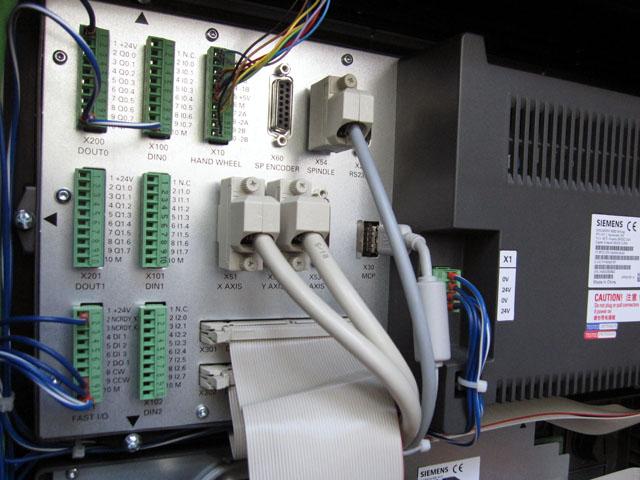

Commissioning, Service + Expanding User Interface

Commissioning, Service + Expanding User Interface (Training for Siemens 808D) Also 808D as an entry level control of Sinumerik family provides possibility for expanding user interface.
  • Training regarding internal tools and assistants

  • OEM and user cycles, OEM online help

  • Generate user dialogs (Easy XML)

  • Fast I/O, digital I/O, PLC programming tool


Hardware and Prices

Hardware Prices Sinumerik 808D Training in this field covers themes around building and retrofitting machine tools using Sinumerik 808D.
  • Configuration examples and prices

  • Purchasing hardware

  • Options

  • Handling of licences

  • User manual and documentation for free directly from the manufacturer (for free as PDF files or printed plus printing costs)

Contact »
Please ask also for further, customized workshops and courses for users, machine manufacturers and resellers worldwide!

An overview of all standard trainings for Sinumerik 808D you can find here:

Training SINUMERIK 808D Basic, Turning - Operating and Programming

Target of this training is to impart all the knowledge, which the participants will need for doing challenging turning operations.
Here participants get the necessary know-how to be able to use all the features of turning machines with this Siemens CNC-Control.

Duration: 3 days

Content:
- Repetition of basics regarding CNC machine tools
- Introduction in operating and programming of Sinumerik controller
- Measure work piece, measure tool
- Working with tool management
- Turning and drilling tasks
- G-Code und ISO-Code
- Standard cycles
- Using contour editor for creating turning contours
- Subprograms
- Repetitions of program parts and elements of Sinumerik high level language
- Using parameter and variables

Required Qualifications: Basic knowledge of turning technology; Reading of technical drawings

Target Audience: Operators, Setters, Programmers
Contact »

Training SINUMERIK 808D Basic, Milling - Operating and Programming

Target of this training is to impart all the knowledge, which the participants will need for doing challenging milling operations.
Here participants get the necessary know-how to be able to use all the features of milling machines with this Siemens CNC-Control.

Duration: 3 days

Content:
- Repetition of basics regarding CNC machine tools
- Introduction in operating and programming of Sinumerik controller
- Measure work piece, measure tool
- Working with tool management
- Milling and drilling tasks
- G-Code und ISO-Code
- Standard cycles and position patterns
- Using contour editor for creating milling contours
- Subprograms
- Repetitions of program parts and elements of Sinumerik high level language
- Using parameter and variables

Required Qualifications: Basic knowledge of milling technology; Reading of technical drawings

Target Audience: Operators, Setters, Programmers
Contact »

Training SINUMERIK 808D Advanced, Turning - Operating and Programming

Target of this training is to impart all the knowledge, which the participants will need for doing challenging turning and milling operations.
Here participants get the necessary know-how to be able to use all the features of turning machines with this Siemens CNC-Control.

Duration: 3 days

Content:
- Repetition of basics regarding CNC machine tools
- Introduction in operating and programming of Sinumerik controller
- Measure work piece, measure tool
- Working with tool management
- Turning, milling and drilling tasks
- G-Code und ISO-Code
- Standard cycles and position patterns
- Driven tools
- Using contour editor for creating turning and milling contours
- Subprograms
- Repetitions of program parts and elements of Sinumerik high level language
- Using parameter and variables
- Face transformation, cylinder jacket transformation

Required Qualifications: Basic knowledge of turning technology; Reading of technical drawings

Target Audience: Operators, Setters, Programmers
Contact »

Training SINUMERIK 808D Advanced, Milling - Operating and Programming

Target of this training is to impart all the knowledge, which the participants will need for doing challenging milling operations.
Here participants get the necessary know-how to be able to use all the features of milling machines with this Siemens CNC-Control.

Duration: 3 days

Content:
- Repetition of basics regarding CNC machine tools
- Introduction in operating and programming of Sinumerik controller
- Measure work piece, measure tool
- Working with tool management
- Milling and drilling tasks
- G-Code und ISO-Code
- Standard cycles and position patterns
- Using contour editor for creating milling contours
- Subprograms
- Repetitions of program parts and elements of Sinumerik high level language
- Using parameter and variables

Required Qualifications: Basic knowledge of milling technology; Reading of technical drawings

Target Audience: Operators, Setters, Programmers
Contact »
hide trainings
alle Schulungen ausblenden
Comparison Basic vs. Advanced
Functions and Features
Sinumerik 808D
Basic (version 4.4)
PPU141.1
Sinumerik 808D
Advanced (version 4.6)
PPU16x.2
Configuration
Operation with SINAMICS V60 and SIMOTICS S-1FL5 via pulse / direction interface available not available
Operation with SINAMICS V70 and SIMOTICS S-1FL6 via drive bus interface not available available
Maximum number of axes / spindles 4 5
±10V analog interface for spindles available available
Display size (TFT color displays) 7.5 inch
PLC adaptation control S7-200-based
Standard data transfer RS-232C available available
Standard data transfer via USB available available
Standard data transfer via Ethernet not available available
Number of digital inputs / outputs 72 / 48
Touch-trigger probe interface available available
Axis functions
Acceleration with jerk limitation available available
Dynamic Servo Control in the drive not available available
Feed motor, max. speed 2000 rpm Up to 4000 rpm
2500 ppr Incremental encoders are supported available available
20-bit absolute encoders are supported not available available
Interpolation
Interpolating axes, up to (turning / milling) 3 / 4
Straight line, circle, helix available available
Thread cutting with constant or variable pitch available available
Rigid tapping (without compensation chuck) available available
Advanced Surface Milling
Compressor not available available
Transformations
Face / peripheral surface transformation (TRANSMIT / TRACYL) not available available
SINUMERIK synchronous architecture
Asynchronous subprograms (ASUB) available available
Compensations
Backlash and leadscrew compensation available available
Bidirectional leadscrew compensation not available available
Friction compensation not available available
Tools
Number of tools/cutting edges in the tool list, up to 64 / 128
Driven tool for turning not available available
CNC operation
T, S, M function in JOG available available
Graphic guided tool / workpiece measuring in JOG available available
Block search with calculation (T, S, F, M, position) available available
CNC programming
SINUMERIK CNC programming language with high level language elements available available
ProgramGUIDE BASIC (technology cycle support) available available
ISO code CNC programming language with canned cycles available available
Technology cycles for drilling, milling and turning available available
Contour computer available available
2D CNC simulation and simultaneous recording (real-time simulation) available available
Onboard optimization and diagnostics
Context-sensitive onboard help system available available
Onboard signal and network diagnostics available available
Onboard servo and drive optimization (AST) not available available
Onboard drive commissioning and diagnosis not available available
Service planner available available
Safety functions
Safe Torque Off (drive-based) not available available
Open Architecture
Customized HMI extension (Easy XML) available available
User cycles available available
Prices (list price in USD plus taxes, freight etc.)
Price for panel processing unit (PPU) + machine control panel (MCP)
(plus drives, motors etc.)
from $2,720.00 from $2,790.00
available = available (certain functions are available as option)
not available = not available
